Description

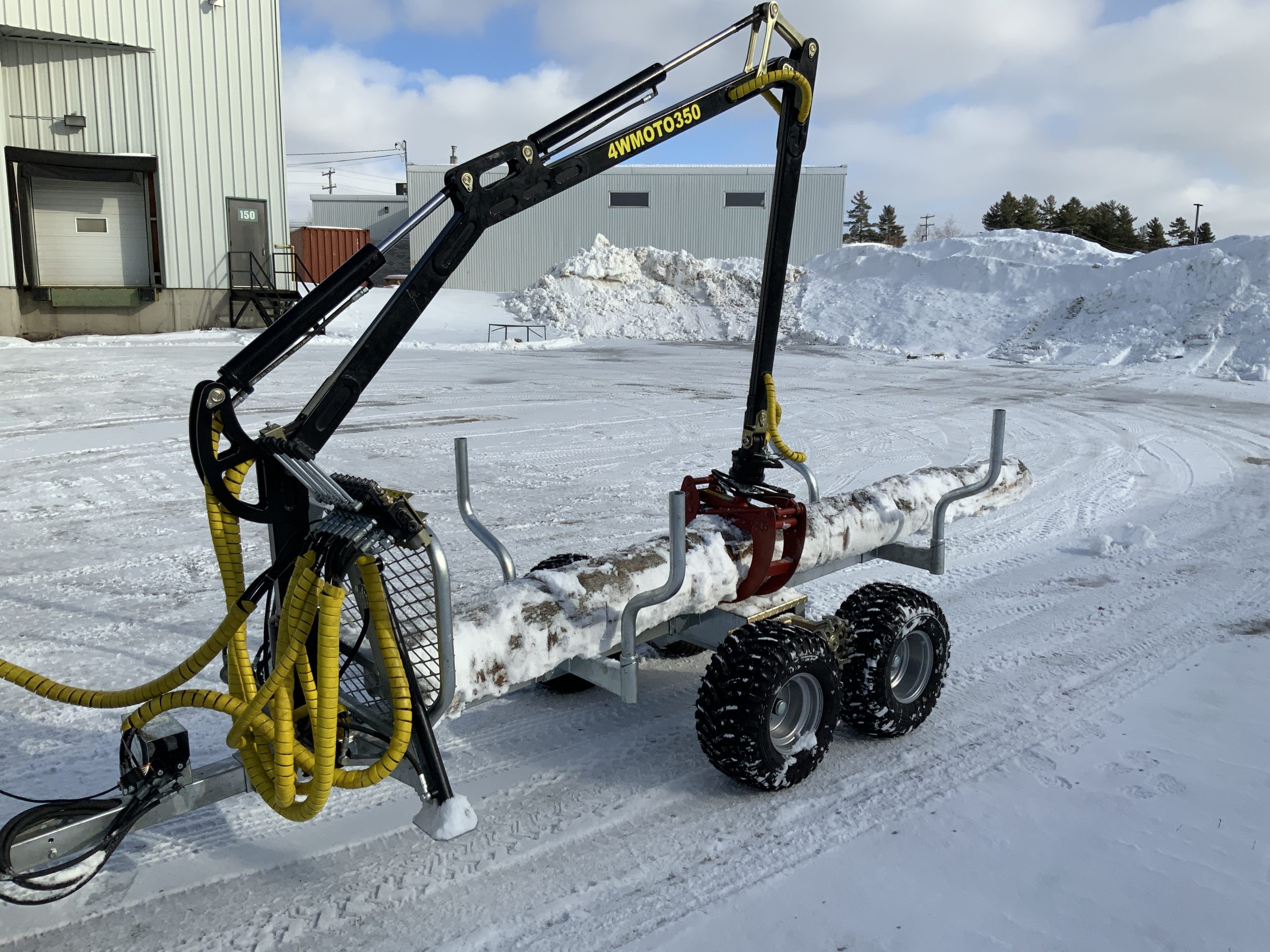

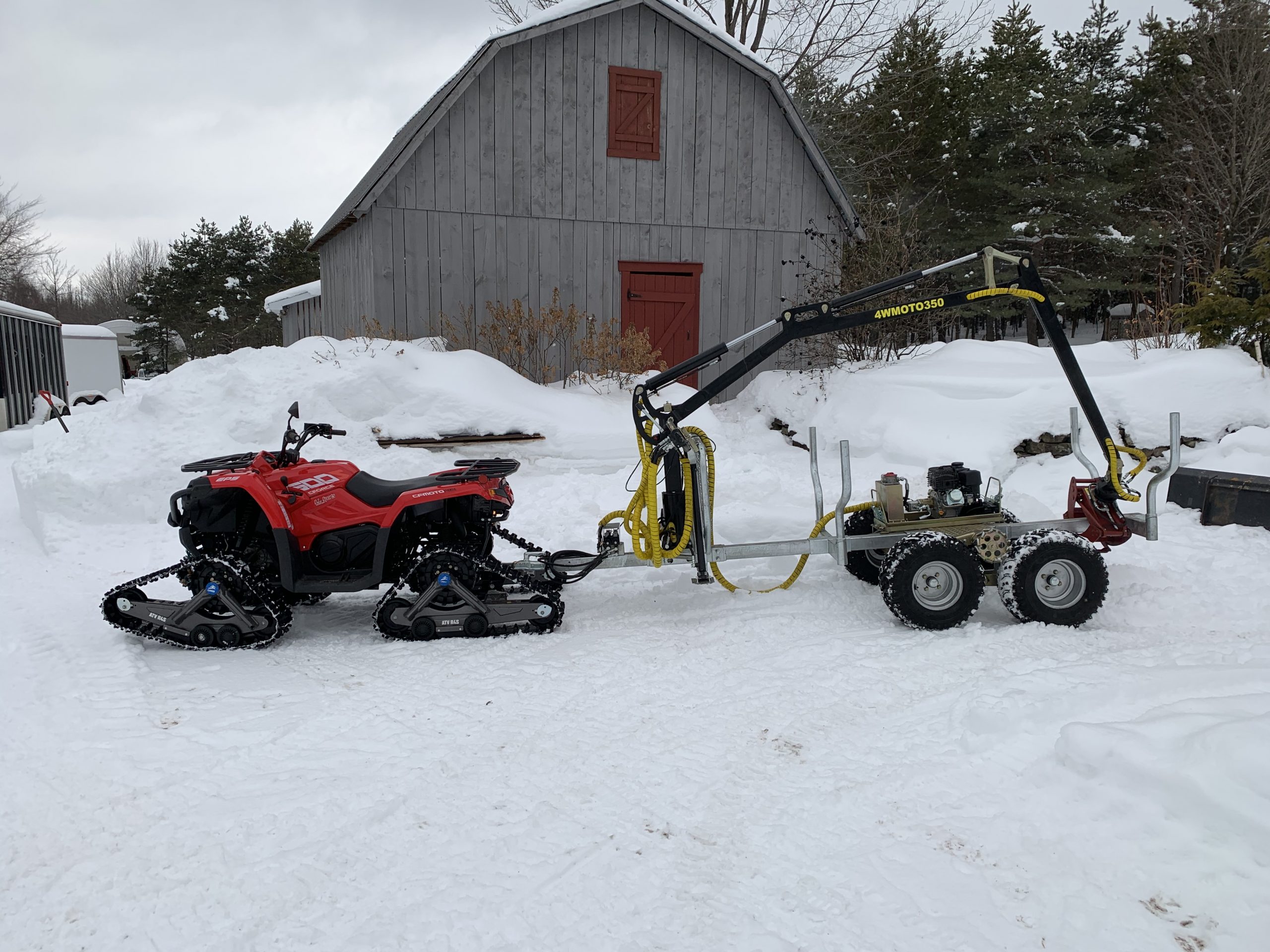

Crane 450, mounted in the rear of ATVs or tractors, works as forest and farm machine.
There are trailer, crane, hydraulic system, engine workshop etc. in crane. Option: hydraulic
winch, hydraulic tipping box and bucket
NF-450Traction
12,450.00 $
Out of StockModel Name Crane 450

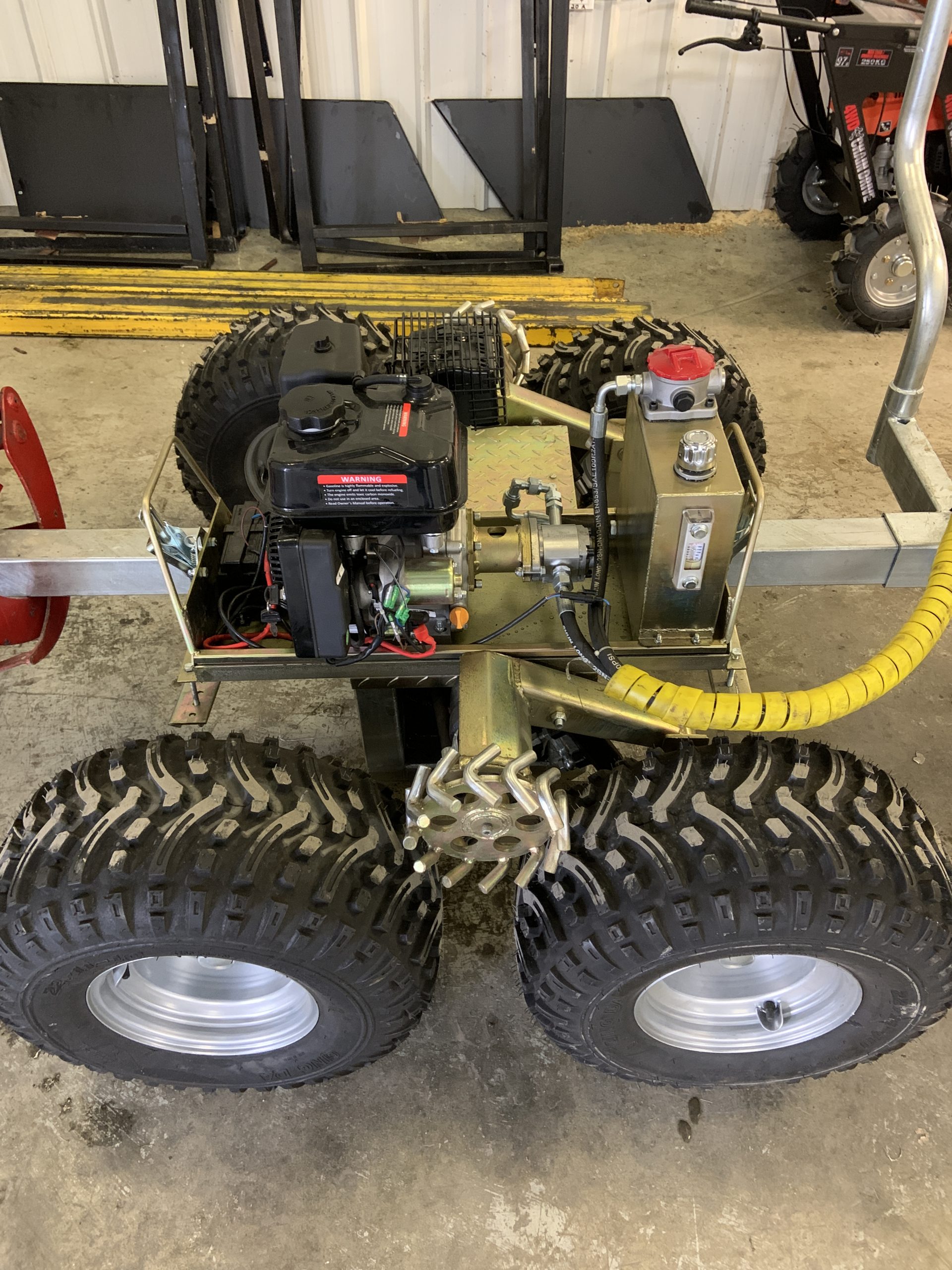

Engine: 6.5HP/5kw, electric start+ pull
start
Max rotary speed: 3500r/m
Pressure of oil pump: 16Mpa
Pump supply oil flow: 3.4mL/R
Working temperature : -30℃to80℃
Length of crane arm: 4.3M
Base between two supporting legs: 2.5M
Max. lifting height: 5.3M
Lifting capacity at max reach with grabber: 200Kg
Swing angle: ±90℃
Hydraulic oil Tank: 12.9L
Hydraulic oil NO.46
Fuel tank for engine: 4L
Demension of crane with trailer (LWH mm) 4200（3600）X1600X1800
Wheel: 25×11-12
Loading capacity on trailer: 2000Kg
Grapple Crane 450 weight: 760Kg
Loading quantity in container: 12 /24FT
